Mav "Mini" Floor Drain & Septic Line Locator Package

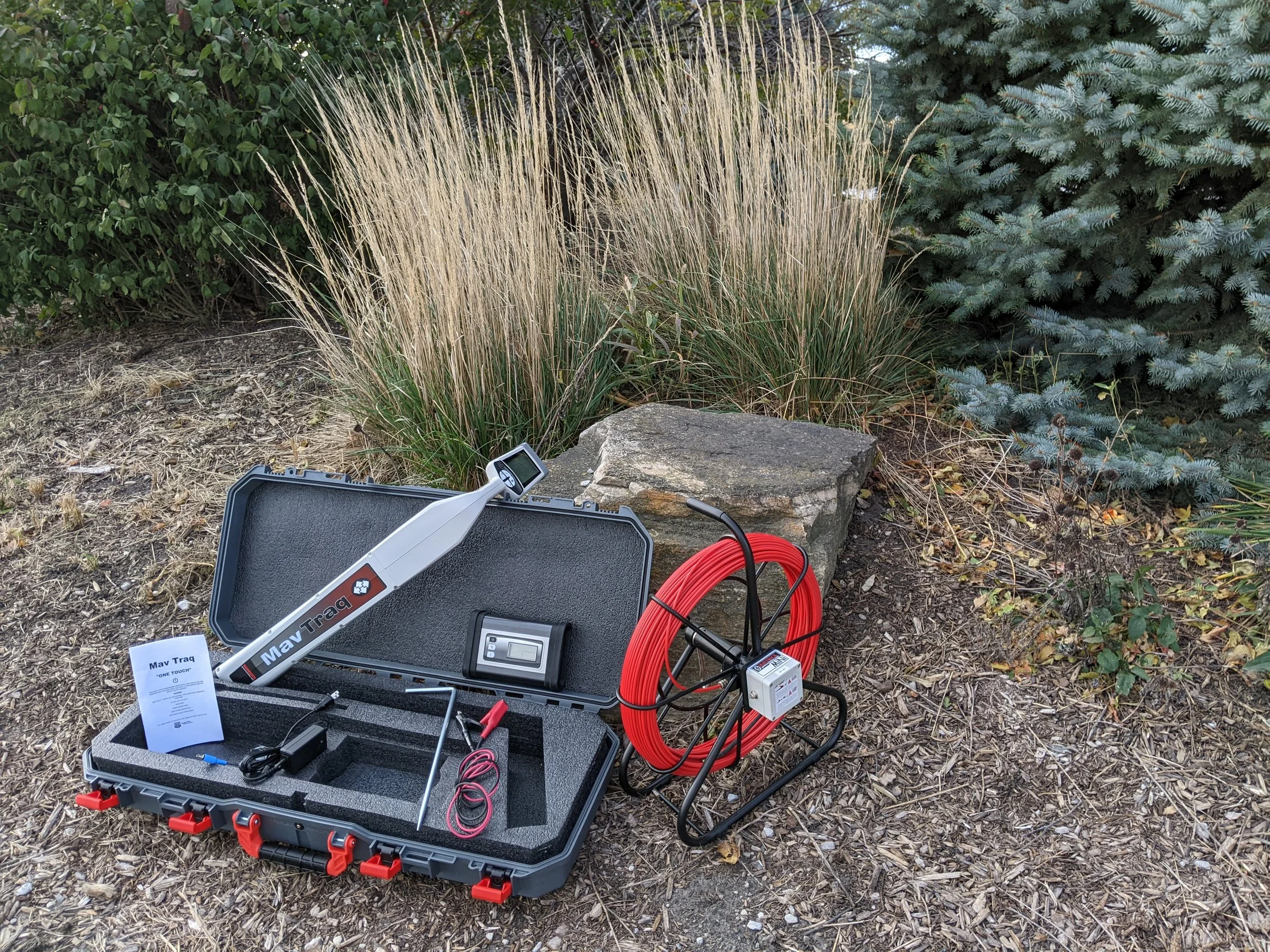

The Mav "Mini" is specifically design for floor drain, gutter drains or septic field locating. Unfortunately it won't push too far in a larger diameter tile. However, in my small diameter duct, pipe or line it should maintain enough rigidity to go the distance. Complete Locating Package: Includes Mav Traq "One Touch" Locating System (Water Resistant Hard Case, Receiver, Transmitter, Connection Leads, Ground Probe and Instructions) 275' (ft) "Mini" Reel
CHECK WHERE TO BUY IN YOU AREA
The Mav "Mini" is specifically design for floor drain, gutter drains or septic field locating. Unfortunately it won't push too far in a larger diameter tile. However, in my small diameter duct, pipe or line it should maintain enough rigidity to go the distance. Complete Locating Package: Includes Mav Traq "One Touch" Locating System (Water Resistant Hard Case, Receiver, Transmitter, Connection Leads, Ground Probe and Instructions) 275' (ft) "Mini" Reel
CHECK WHERE TO BUY IN YOU AREA
The Mav "Mini" is specifically design for floor drain, gutter drains or septic field locating. Unfortunately it won't push too far in a larger diameter tile. However, in my small diameter duct, pipe or line it should maintain enough rigidity to go the distance. Complete Locating Package: Includes Mav Traq "One Touch" Locating System (Water Resistant Hard Case, Receiver, Transmitter, Connection Leads, Ground Probe and Instructions) 275' (ft) "Mini" Reel
CHECK WHERE TO BUY IN YOU AREA
WARNING! READ!
This tool is designed to detect electromagnetic fields emitted from cables and buried metallic utilities. There are buried cables, pipes, and utilities this instrument CANNOT detect. LOCATING is not an exact science. The only certain way to be sure of the existence, location, or depth of buried utilities is to carefully expose (dig up) the utility.
WARNING! Use this tool only for the intended purpose as described in this manual. Failure to follow these warnings could result in serious injury or death.
SHOCK HAZARD! Lethal voltages may be present at the transmitter's output. Turn off the transmitter before touching test lead or any un-insulated conductor. Make connection to ground and target conductor before turning on transmitter. Do not connect to live voltage or active utility lines. De-energize any circuits in or around the work area. Do not connect to utilities, cables or pipes without authorization and training. Only persons who understand, are qualified, licensed and trained in utility locating may use this equipment in that capacity.
HAZARDOUS ENVIRONMENT! Do not expose yourself to hazardous chemicals, hazardous gas, or explosive environment. Do not connect to utilities, cables or pipes without authorization and training. Only persons who understand, are qualified, licensed and trained in utility locating may use this equipment in that capacity.
NATURAL GAS! Be aware of the presence of NATURAL GAS. No location should ever be assumed, or work performed without the consultation of proper authority, authorization, and supervision!
IMPORTANT! Follow appropriate safety procedures, your companies’ policies, safety codes and all laws. CALL “811” BEFORE YOU DIG!
WATER RESISTANCE! This equipment is designed with a level of water resistance. Like all electronic devices, it is best to avoid exposure to rain or moisture. In the event of exposure, dry the unit off and store in a dry place with the case open for at least 24 hours. The housing on both the receiver and transmitter are production sealed. That seal will be compromised if units are disassembled for any reason.
OPERATIONAL ASSISTANCE! Consultation and use of this unit are available by calling Maverick, Inc. at (800) 685-2818
Receiver Specifications
Pre-Programmed Operating Frequencies: 82.315 kHz & 512 Hz Sonde Passive: Power mode: 60 Hz Antenna Mode: Peak & Beacon/Sonde (equipped with dual horizontal antennas & vertical antennas for wider range modes), directional guidance, peak (single horizontal antenna) & null (single vertical antenna). Display Indicators Backlit segmented LCD bar graph, battery condition, continuous mode signal strength, depth measurement, line orientation, left/right line guidance, operating mode, , Live Sound Volume level & function indicators, Audio Indication Variable pitch & 4 volume selections including mute. Current Measurement indicates relative current Battery Life Continuous: 30 hours intermittent: 82 hours Power Source Rechargeable Lithium Ion 55.5Signal Strength LCD bar graph, absolute signal strength 0-999 Gain Control Left/Right Guidance Mode: Manual gain adjustment & automatic centering Dynamic Range 126 dB Depth Measurement DIGITAL: 3-digit LCD readout of push-button measurement (1 inch - 30 feet) (.02m-10.6m) with accuracy > 5% of depth. MANUAL: 45º triangulation method Operating Temperature -4º F to +133º F (-20º C to +55º C) Ingress Protection Rating IP65 Dimensions 30.3” x 9.4” (77 cm x 24 cm) Weight 4.2 lbs (1.9 kg)
Transmitter Specifications
Pre-Programmed Operating Frequencies 82.315 kHz & 512 Hz Indicators AC load assistance measurement, relative ohms, voltage, live voltage output, current output, power level, frequency, mode, battery indication alert, low battery indicator audio/visual with modulated low battery warning transmitted to receiver. Load Matching Automatic from 5 ohms to 25,000 Ω Output Power 3 power settings Low & Medium Frequency Range: 0.2w to 3w High Frequencies (above 44kHz) : 0.2 to 1w Power Source Rechargeable Lithium Ion 84.24 h Battery Life Continuous: 8-15 hours (dependant on load, frequency, power setting) Operating Temperature-4° F to 133° F (-20° C to 55° C) Ingress Protection Rating IP65 Dimensions 8.2” x 5.4” x 2.1” (21 cm x 13.7 cm x 5.3 cm) Weight 1.95 lbs (0.88 kg)
WARRANTY
48 Month (4 Years) Warranty from date of delivery against defects in material and workmanship (EXCEPT BATTERIES) on all instruments. This warranty is void if, after having received the instrument in good condition, it is subjected to abuse, unauthorized alteration or casual repair. We will repair or replace products that prove to be defective during the warranty period. NO OTHER WARRANTY IS EXPRESSED OR IMPLIED. THE WARRANTY DESCRIBED IN THIS PARAGRAPH SHALL BE IN LIEU OF ANY OTHER WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. WE ARE NOT LIABLE FOR CONSEQUENTIAL DAMAGES.
