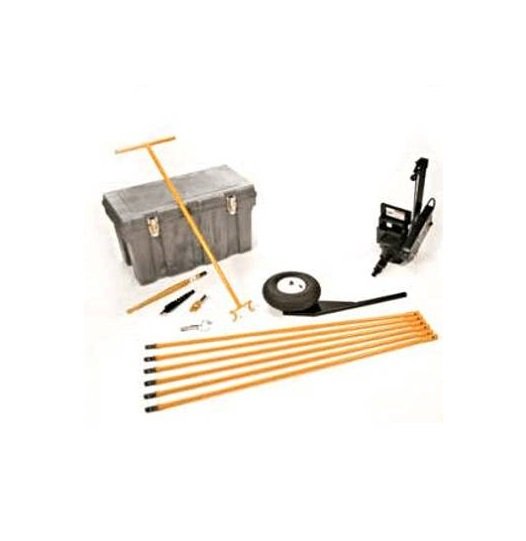

Lineward Boring Attachment
Comes with:
30 ft. of Rod
Rod Guide
Mole Bit
Rock Bit
Retriever
Balance Wheel (helps negotiate steep grades)
Uncoupling Pliers
Comes with:
30 ft. of Rod
Rod Guide
Mole Bit
Rock Bit
Retriever
Balance Wheel (helps negotiate steep grades)
Uncoupling Pliers
Comes with:
30 ft. of Rod
Rod Guide
Mole Bit
Rock Bit
Retriever
Balance Wheel (helps negotiate steep grades)
Uncoupling Pliers
The BA2 Boring Attachment is slipped onto the L2 when needed for use with no tools, bolts or pins and easily removed when you have completed the application. The L2 simply needs the appropriate engine belt pulley to be installed to accept the BA2. All installation parts are included with the BA2 Boring Attachment Package.
The BA2 Boring Attachment comes with 30 feet of bore rod which is enough to bore under approximately 25 feet of paved surface. Ground conditions often vary due to fill material under paved surfaces and can influence the direction and distance of the bore. Longer bores may be accomplished with additionally purchased bore rods.
The standard drilling bit is 1-1/2″ diameter. A supplied back reamer of 1-3/4″ can be used to expand the hole while pulling back the desired material under the surface. A 1-7/8″ carbide rock bit is also included in the BA2 Boring Package.
